Products

Our Products

Gas & Oil Burner Head

•  On Skid Mounted
• Cap. 4,000 BFPD Single Nozzle
• Built with Water Spray
• Ignition System

Square Storage Tank

• Single & Dual Compartment
• Flame Arrester Installed
• Atmospheric Tank
• Tera & Calibration by
  Metrology
• Capacity : 100 bbls, 200 bbls, & 500 bbls

Choke Manifold

• Adjustable and Positive
  Choke Size
• Five Cameroon Valves
• Easy Maintenance
• Sour Service
• Pressure Rating: 10,000 psi

Data Header

• Monitoring Flow Line
  Pressure
• Monitoring Flow Line
  Temperature
• Obtain Sample
• Chemical Injection Sub
• Pressure Rating: 10,000 ps

3 Phase Horizontal Separator

• Measure Flow of Gas and
  Liquid on Surface
• Used in Well Testing, Clean
  Up New Completions or
  Stimulated Well, & Production Group
• Pressure Rating : 1,440 psi
• Fluid Rate : 15,000 BFPD
• Gas Rate : 60 MMscfd
• 3 Min. Retention Time

Surface Flow Head

• Meet Industry Standard for
  Safety
• Swivel Balanced
• Can be Connected to
  Lubricator
• Chemical Injection Sub
• Pressure Rating: 10,000 psi

Slickline Unit

• Single or Double Drum Unit
• Wire Diameter 0.105 length
  20,000 ft
• PowerPack by Perkin Diesel
  75 HP
• Completed Slickline Tools
• Lubricator Pressure Control
  5,000 psi

Surface Read Out Unit (SRO)

• Double Drum Unit
• Electric Mono Conductor
  Cable
• Wire Diameter 0.105 length
  20,000 ft
• PowerPack by Perkin Diesel
• Lubricator Pressure Control
  5,000 psi

Gas Engine & Diesel Engine Genset

• Gas & Diesel Generator Set
• Open & Silent Type
• Brand Cummins
• Model GPN, Type 250 KVA
• Alternator Stamford

Electronic Memory Recorder Gauge (EMR)

• Record Bottom Hole
  Pressure & Temperature
• Can be Run with DST
  Equipment
• Can be Run by Wireline
• Sensor Type : Piezoresistive
• EMR Gauge by Canada
  Tech
• Minimum Sampling Interval : 3 seconds
• Pressure Rating: 10,000 psi
• Temperature Rating : 177 ºC

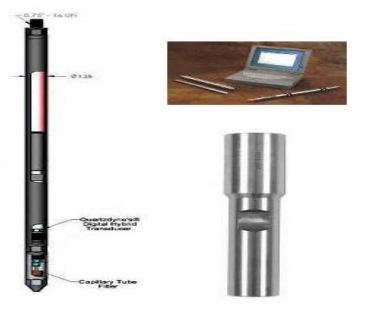

Surface Read Out Gauge (SRO Gauge)

• Real Time Record Bottom
  Hole Pressure & Temperature
• Real Time Data Quality
  Control
• Real Time Data Analysis
• Reduce Testing Time
• Sensor Type : Piezoresistive
• SRO Gauge by Canada Tech
• Minimum Sampling Interval : 3 seconds
• Pressure Rating : 10,000 psi
• Temperature Rating : 177 ºC

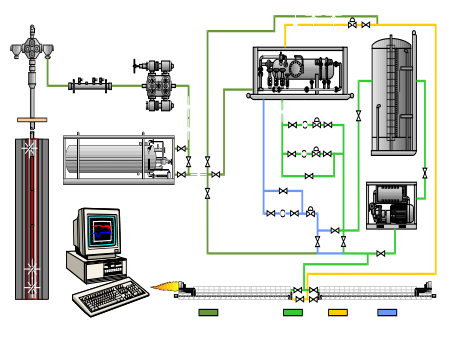

Well Testing Data Acquisition Systems

• Real Time Record Pressure & Temperature on Surface
• Monitoring Pressure &
  Temperature on Surface
• Wireless System
• Sensor Type : Piezoresistive
• Software Data Acquisition by POW Engineering
• Minimum Sampling Interval : 5 seconds
